Height extension for Luna

  • Additional step for spiral staircase Luna
  • Extension of Luna by 190-235 mm
  • Maximum attainable storey height with one height extension: 3290 mm
  • Maximum attainable storey height with two height extensions: 3525 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.

333,60 € incl. tax excl. shipping costs*

SKU: N/A Categories: , Tags: ,

Description

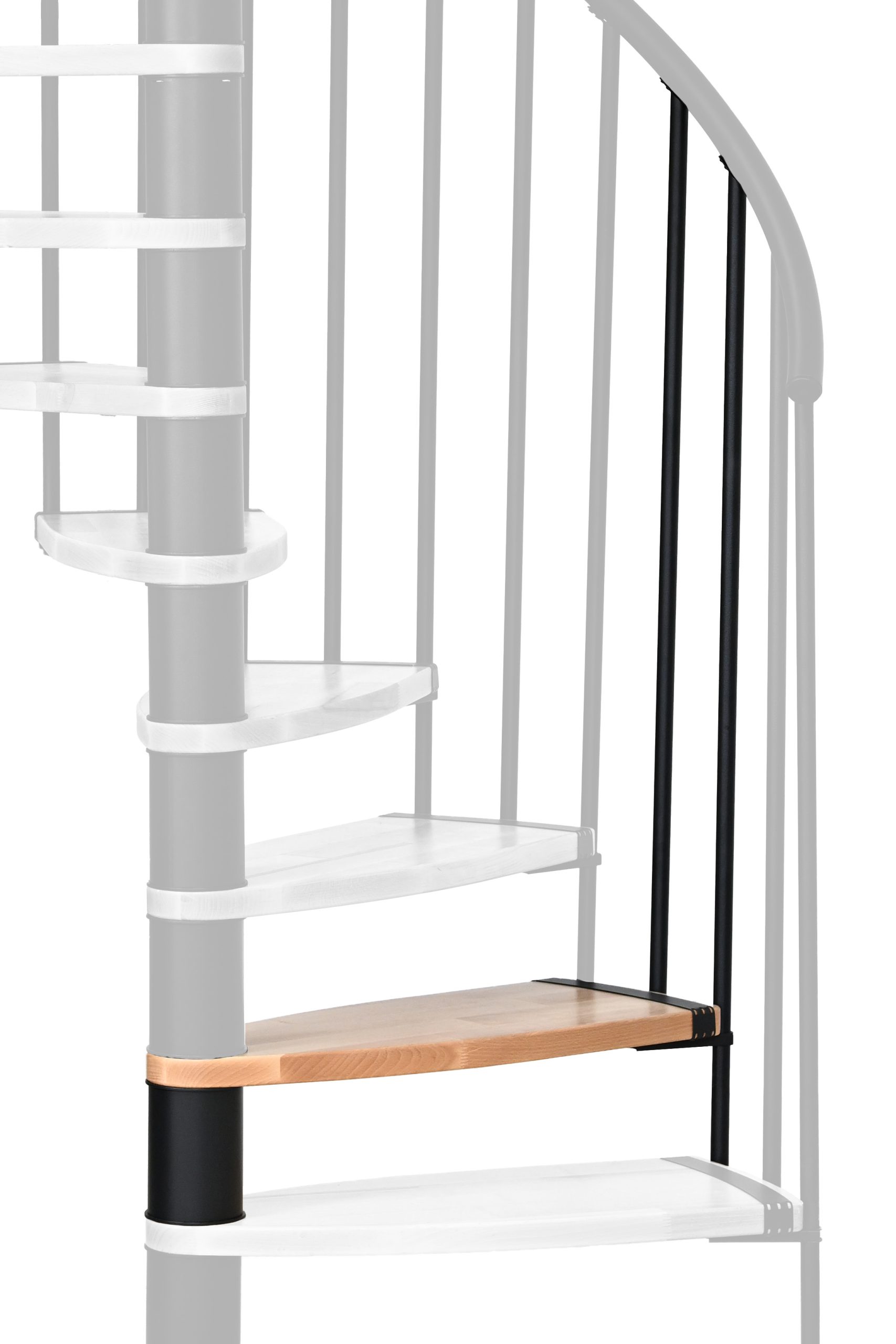

This height extension allows you to add one extra tread to your Luna spiral staircase. The set includes a cut-to-size tread, railing posts and the required installation parts.

Match it to your staircase

The metal components are available in black, grey or white. Make sure the colour and configuration match your Luna when ordering.

One height extension adds between 190 and 235 mm. With one additional tread, a maximum floor-to-floor height of 3,290 mm is possible. With two height extensions, the staircase can reach up to 3,525 mm.

Important: Install no more than two height extensions. The required stability of the staircase cannot be guaranteed with three or more additional treads.

Technical data

Basic data
Steps Beech lacquered
Spindle tubes Steel powder-coated in grey, black or white
Railing rods Steel powder-coated in grey, black or white
Handrail PVC grey, black or white
Number of steps 13
Dimensions
Basic size 1010-1550 x 570-840 mm
Diameter 930-1470 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with one height extension 3525 mm
Rise per step 190-235 mm
Tread depth 150-230 mm
Free passage width 410-680 mm
Tread thickness 35 mm
Rotation per step 20°
Spindle diameter 108 mm
Railing height 1000 mm
Railing rod diameter 22 mm
Handrail diameter 40 mm
Width of the metal strip on the steps 40 mm
