Height extension for Comfort Top & Comfort Top Turn

  • Additional step for space-saving staircases Comfort Top and Comfort Top Turn
  • Extension of Comfort Top and Comfort Top Turn by 185-240 mm
  • Maximum attainable storey height with one height extension: 3360 mm
  • Maximum attainable storey height with two height extensions: 3600 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.

Export as PDF
Add to wishlist

333,60 € incl. tax excl. shipping costs*

SKU: N/A Category: Tags: ,

Description

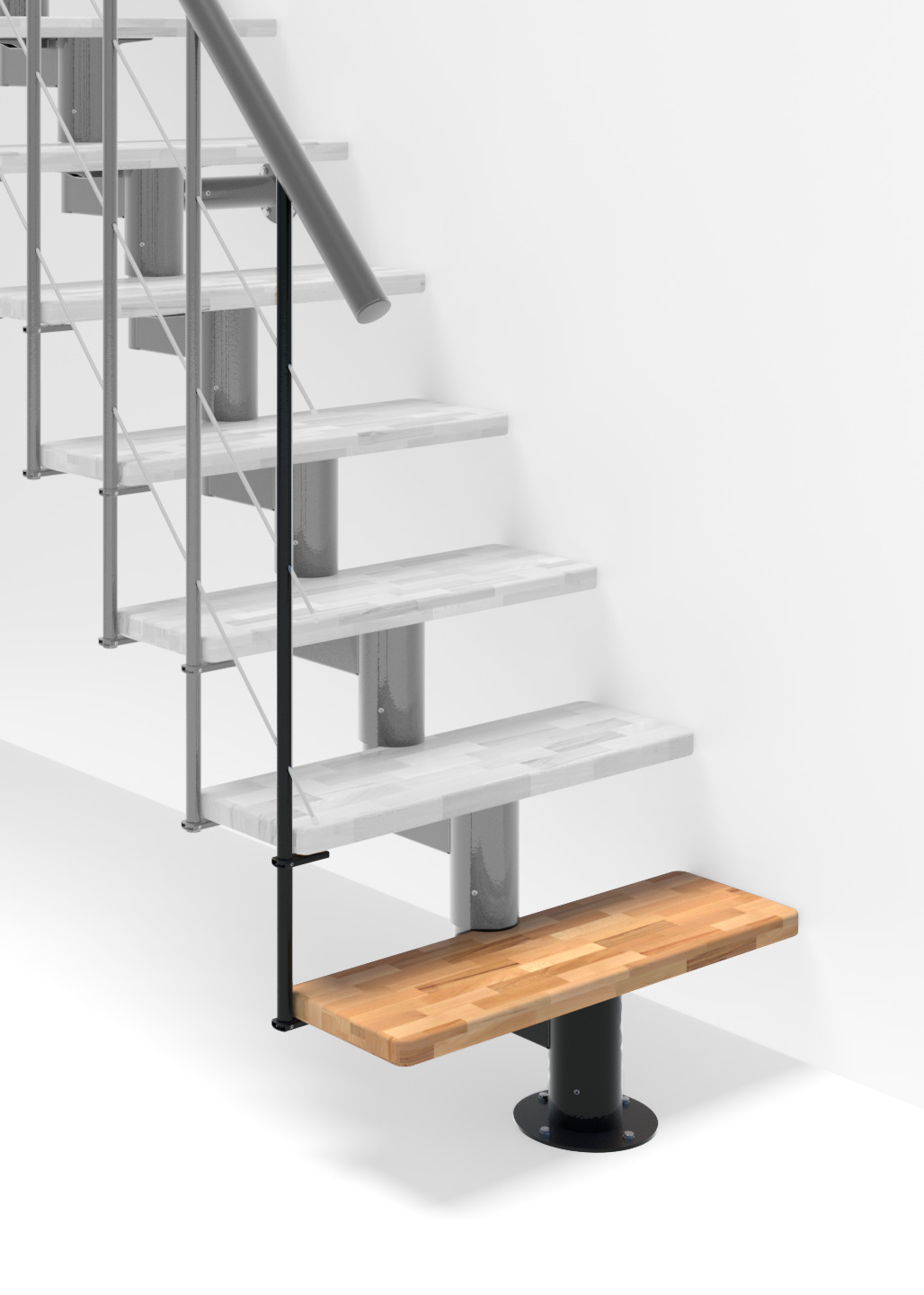

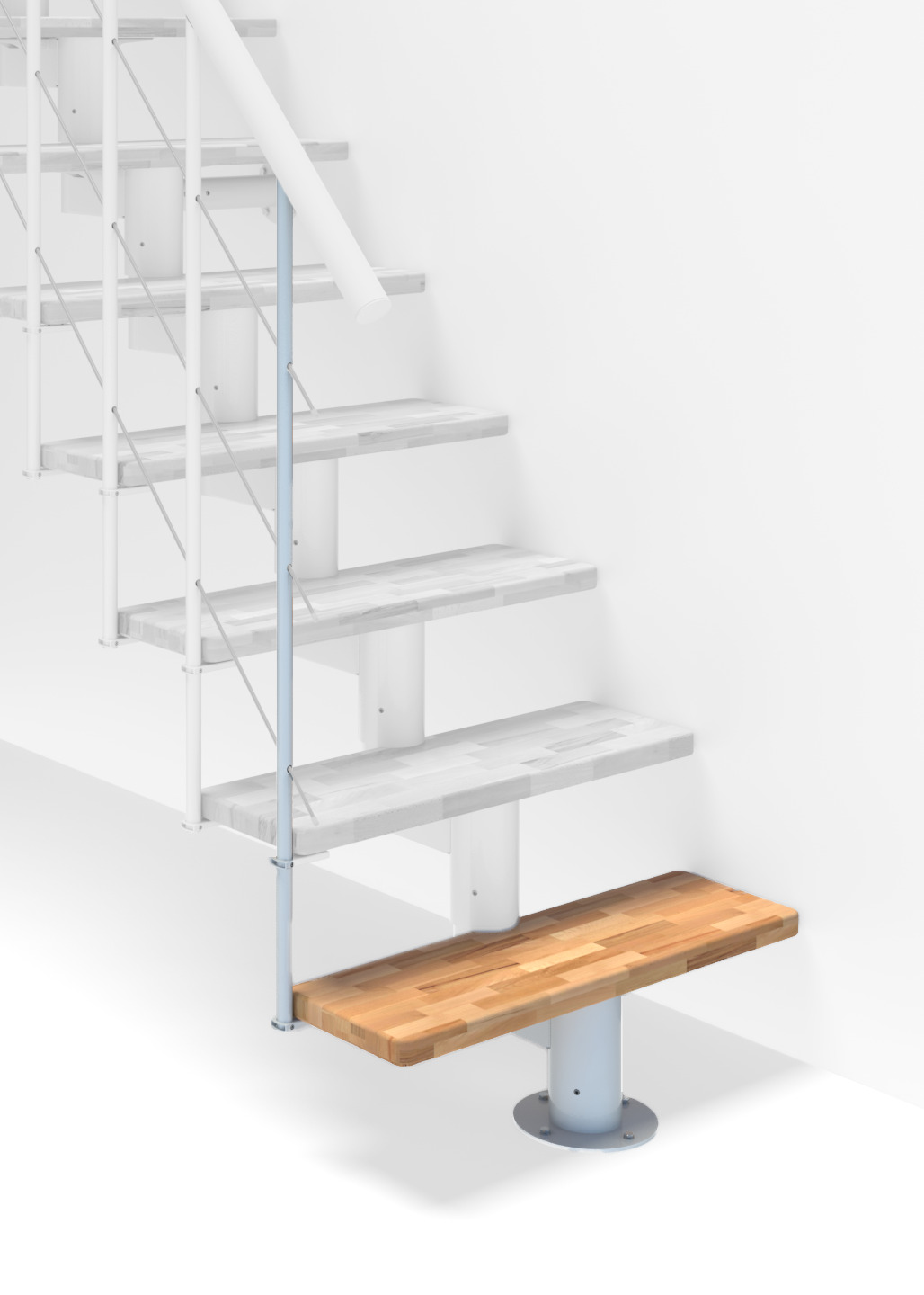

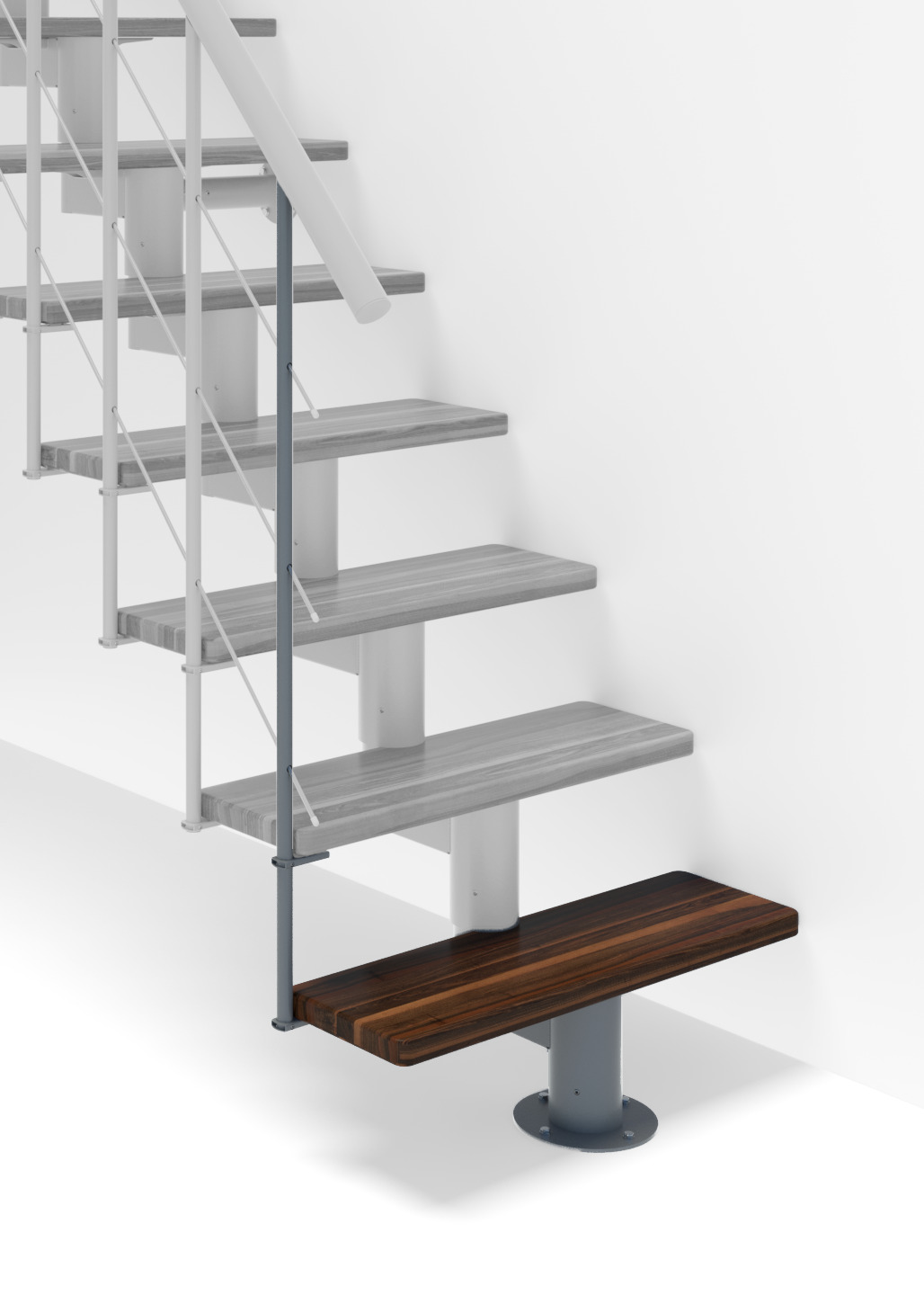

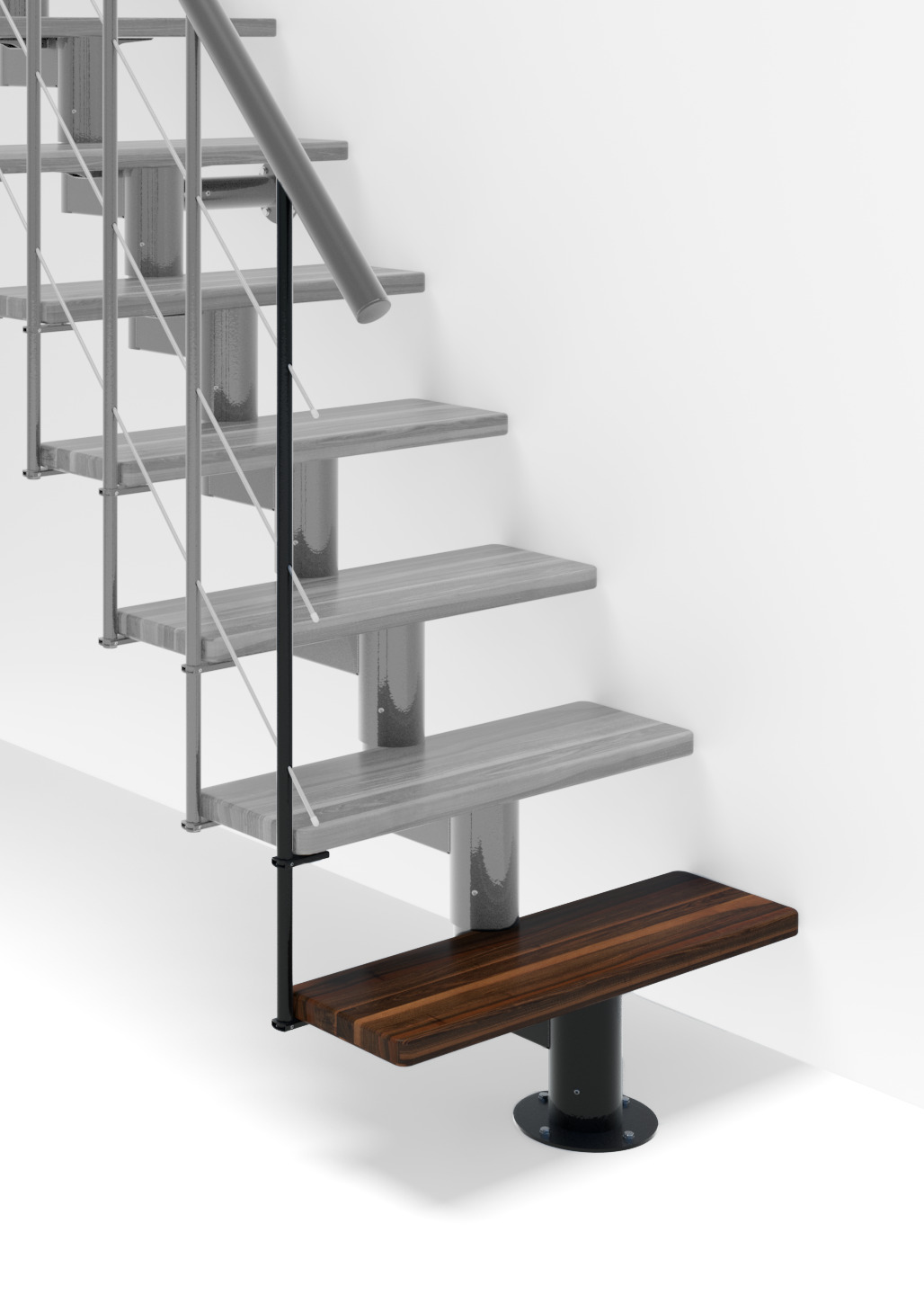

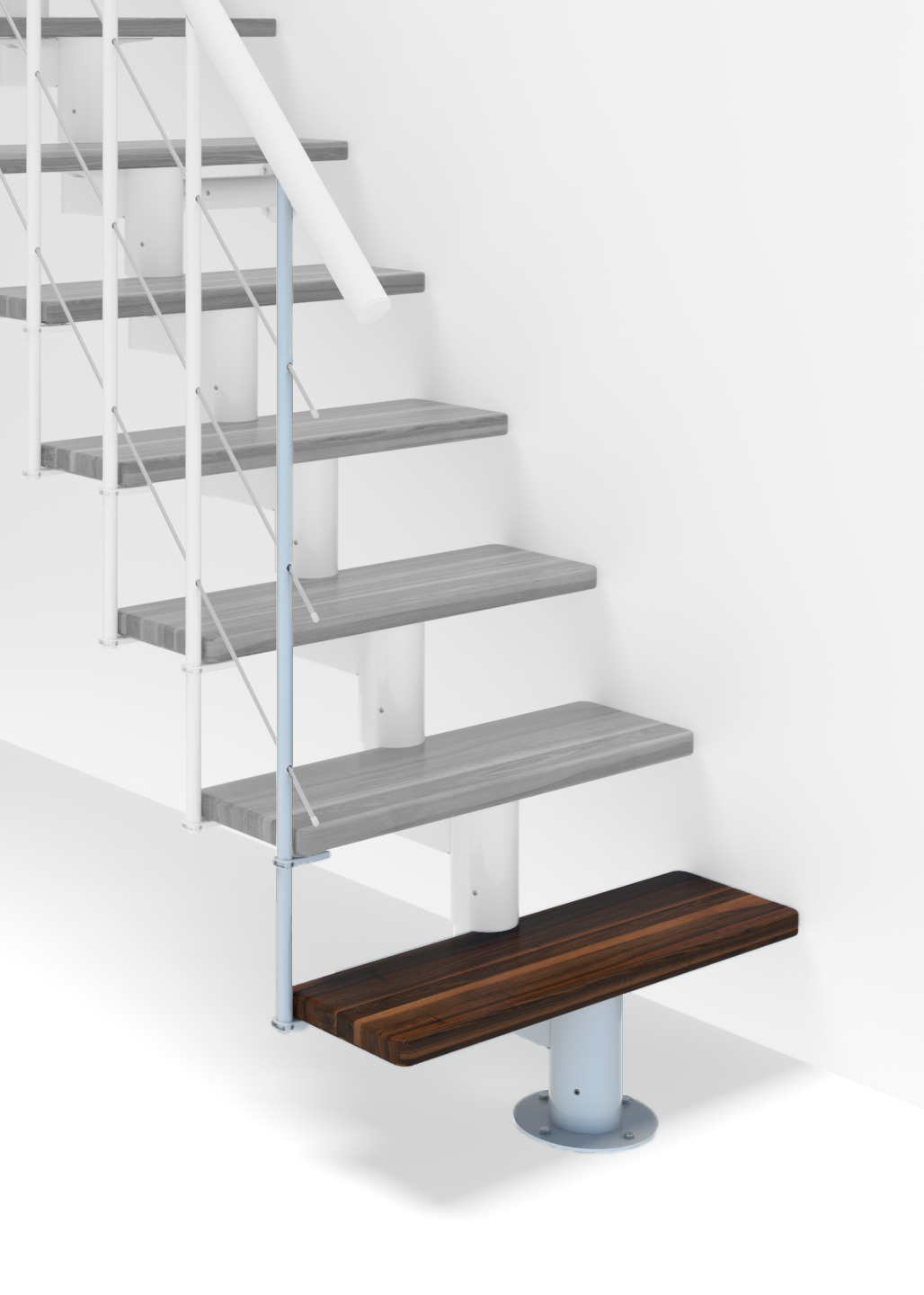

The height extension for the space-saving staircases Comfort Top and Comfort Top Turn consists of a wooden step, a metal support element and various small parts for assembly. You can adapt the height extension package exactly to your staircase – please ensure that you choose the same colour for the wood and the metal parts.

With a height extension, you can extend the space-saving staircases Comfort Top and Comfort Top Turn by a height of 185-240 mm. This gives you a total storey height of max. 3360 mm if you install one additional step. If you order and install two height extensions, a storey height of up to 3600 mm is possible.

Please install a maximum of two height extensions with these staircases! If three or more additional steps are installed, stability is no longer guaranteed.

Technical data

Basic data
Steps beech lacquered or beech stained to walnut
Metal parts Steel powder-coated in grey, black or white
Handrail PVC grey, black or white
Bottom chords Stainless steel
Number of steps 12
Dimensions
Basic size 2440 x 850 mm
Minimal opening size 2030 x 850 mm (with ceiling thickness of 25 cm)
max. storey height 3120 mm
max. storey height with one height extension 3360 mm
max. storey height with two height extensions 3600 mm
Tread depth 200 mm
Rise per step 185 - 240 mm
Free passage width 800 mm
Tread thickness 35 mm
Railing height 900 mm
Railing rod diameter 22 mm
Handrail diameter 40 mm

Downloads

Assembly instructions Comfort Top

Assembly instructions Comfort Top Turn

Technical datasheet Comfort Top

Technical datasheet Comfort Top Turn
