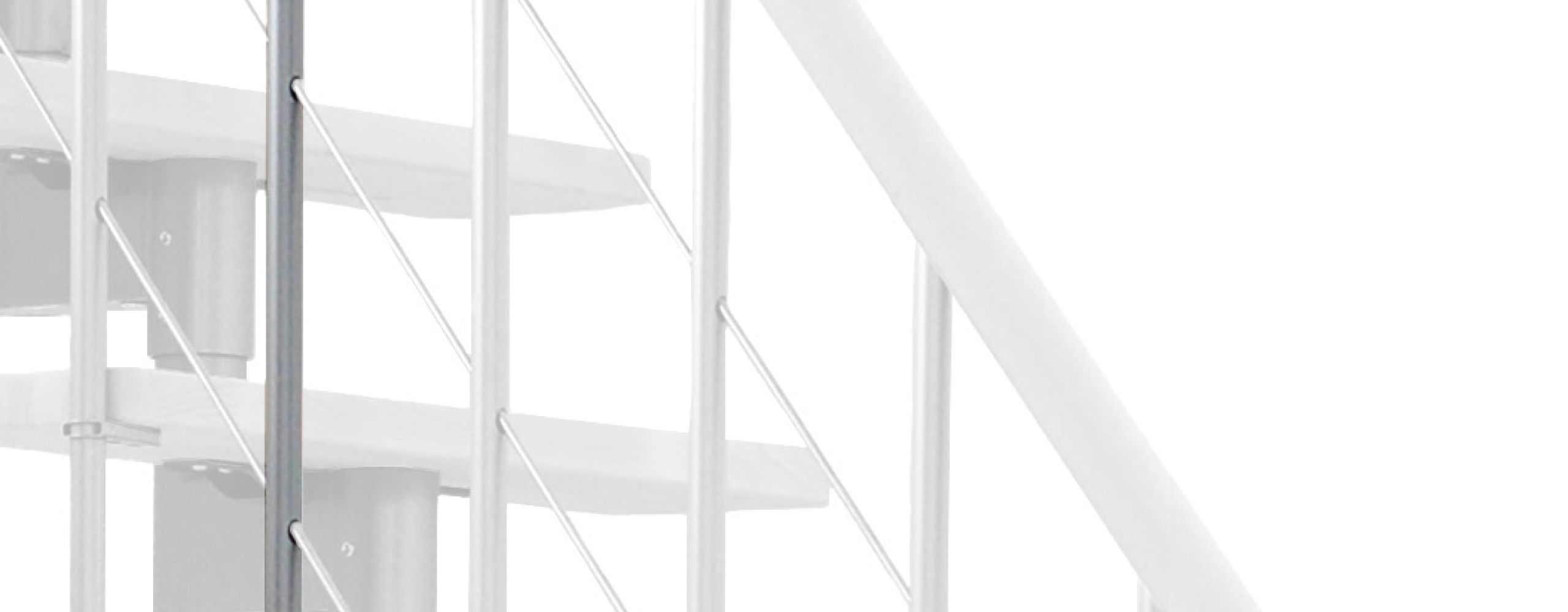

Height extension for the Style and Style Turn stairs with beech steps and gray metal. Shown is a detail of the additional step, the railing bars, and the handrail.

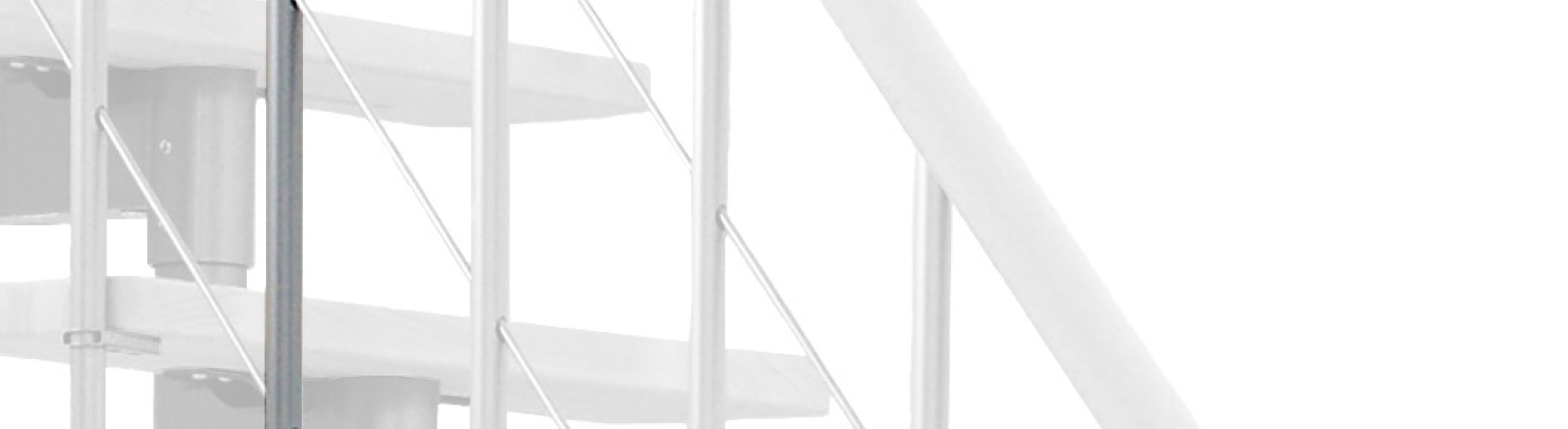

Height extension for the Style and Style Turn stairs with beech steps and gray metal. Shown is a detail of the additional step, the railing bars, and the handrail.
Height extension for the Style and Style Turn stairs with beech steps and black metal. Shown is a detail of the additional step, the railing bars, and the handrail.
Height extension for the Style and Style Turn stairs with beech steps and white metal. Shown is a detail of the additional step, the railing bars, and the handrail.
Height extension for the Style and Style Turn stairs with walnut steps and gray metal. Shown is a detail of the additional step, the railing bars, and the handrail.
Height extension for the Style and Style Turn stairs with walnut steps and black metal. Shown is a detail of the additional step, the railing bars, and the handrail.
Height extension for the Style and Style Turn stairs with walnut steps and white metal. Shown is a detail of the additional step, the railing bars, and the handrail.

Height extension for Style & Style Turn

  • Additional step for space-saving staircases Style and Style Turn
  • Extension of Style and Style Turn by 172-234 mm
  • Maximum attainable storey height with one height extension: 3276 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.
Export as PDF
Add to wishlist

333,60 € incl. tax excl. shipping costs*

SKU: N/A Category: Tags: , ,

Description

The height extension for the staircases Style and Style Turn consists of an additional step element and material for extending the railing. This allows you to add a step to both staircase models. The height extension is available in the same colours as the Style and Style Turn. When purchasing, please ensure that the colours of the staircase and the height extension match.

With one extra step, you can increase the height of the stairs Style and Style Turn by 172-234 mm. In total, with one height extension you can reach a maximum storey height of 3276 mm.

Please install a maximum of one height extension with these staircases! If two or more additional steps are installed, stability is no longer guaranteed.

Technical data

Basic data
Steps Beech lacquered or beech stained to walnut
Handrail Beech lacquered or beech stained to walnut
Metal parts Steel powder-coated in grey, black or white
Bottom chords Stainless steel
Number of steps 12
Dimensions Style
Basic size 1960 x 750 mm
Max. storey height 3042 mm
Max. storey height with one height extension 3276 mm
Rise per step 172-234 mm
Tread depth 163 mm
Free passage width 700 mm
Tread thickness 35 mm
Railing rod diameter 22 mm
Railing height 1000 mm
Handrail diameter 40 mm
Dimensions Style Turn
Assembling options 1/4 turned to the left or to the right
Max. storey height 3042 mm
Max. storey height with one height extension 3276 mm
Tread depth 163 mm
Rise per step 172-234 mm
Free passage width 700 mm
Tread thickness 35 mm
Railing height 1000 mm
Railing rod diameter 22 mm
Handrail diameter 40 mm

Downloads

Assembly instructions Style

Assembly instructions Style Turn

Technical datasheet Style

Technical datasheet Style Turn
