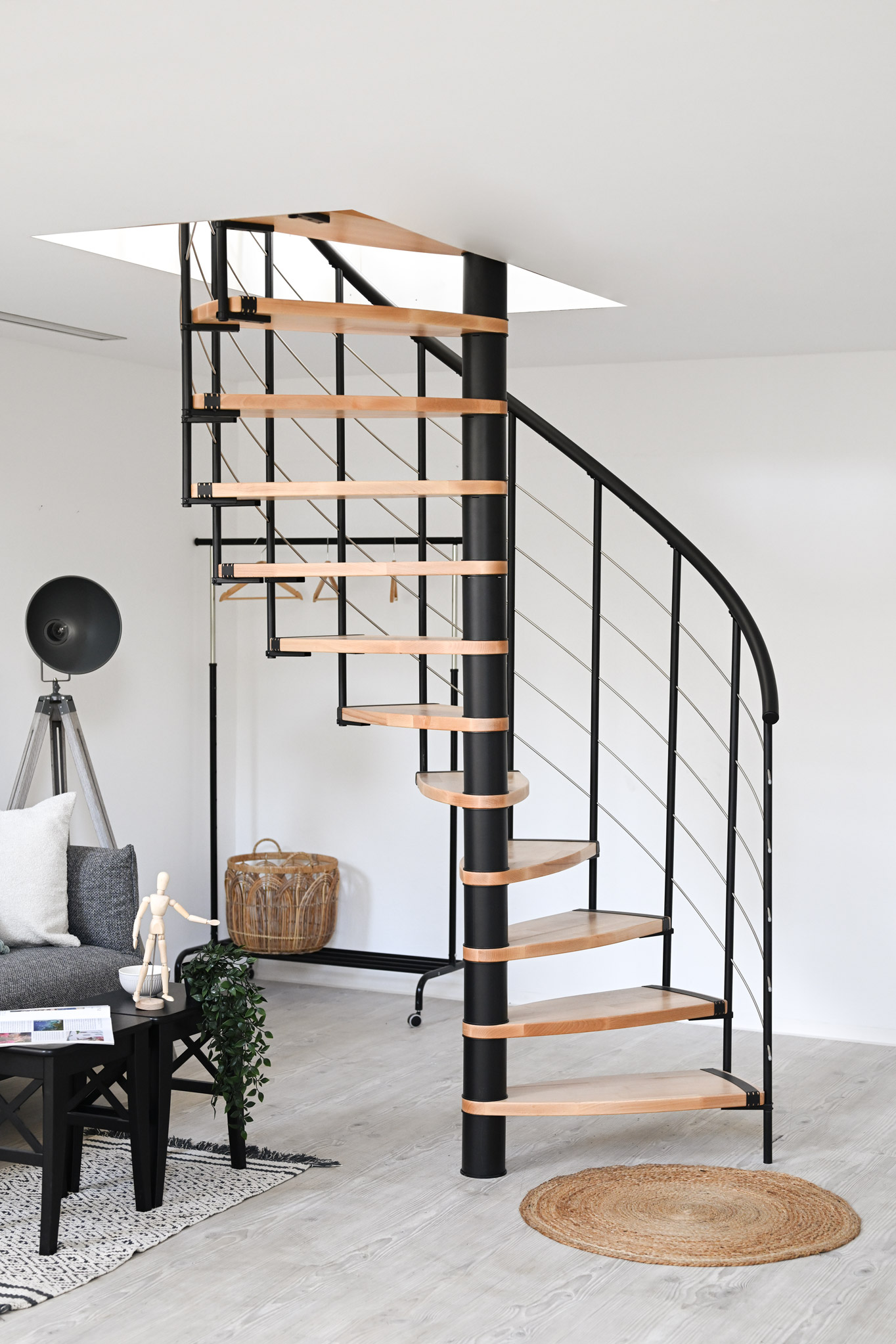

Helios spiral staircase in a modern living space. The elegant combination of light wooden steps and black metal creates a stylish and space-saving design. Perfect for open living concepts.
Helios spiral staircase in a modern living space. The elegant combination of light wooden steps and black metal creates a stylish and space-saving design. Perfect for open living concepts.

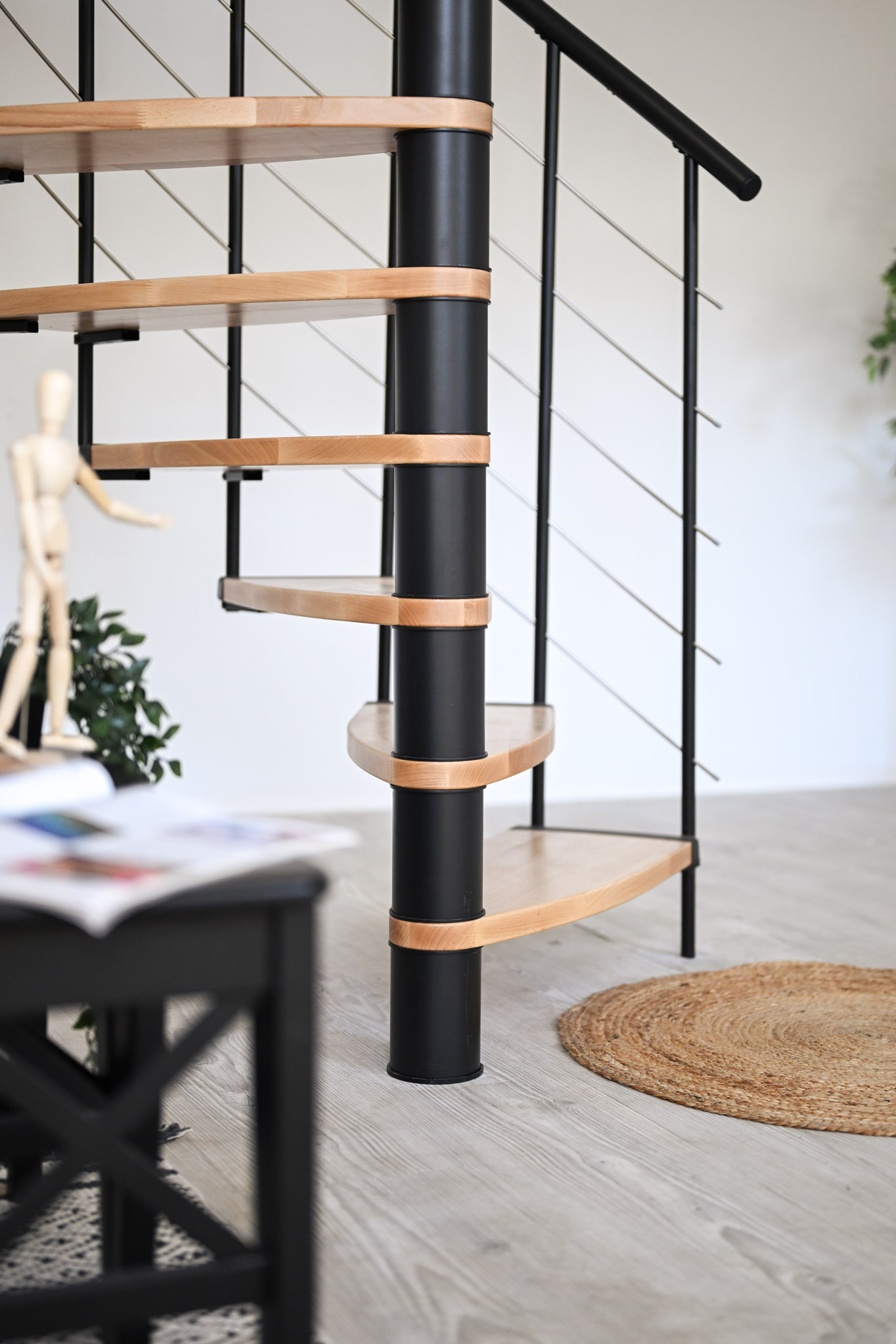

Close-up view of the Helios spiral staircase. The combination of black metal elements and light wooden steps creates a modern and stylish look within the living space.

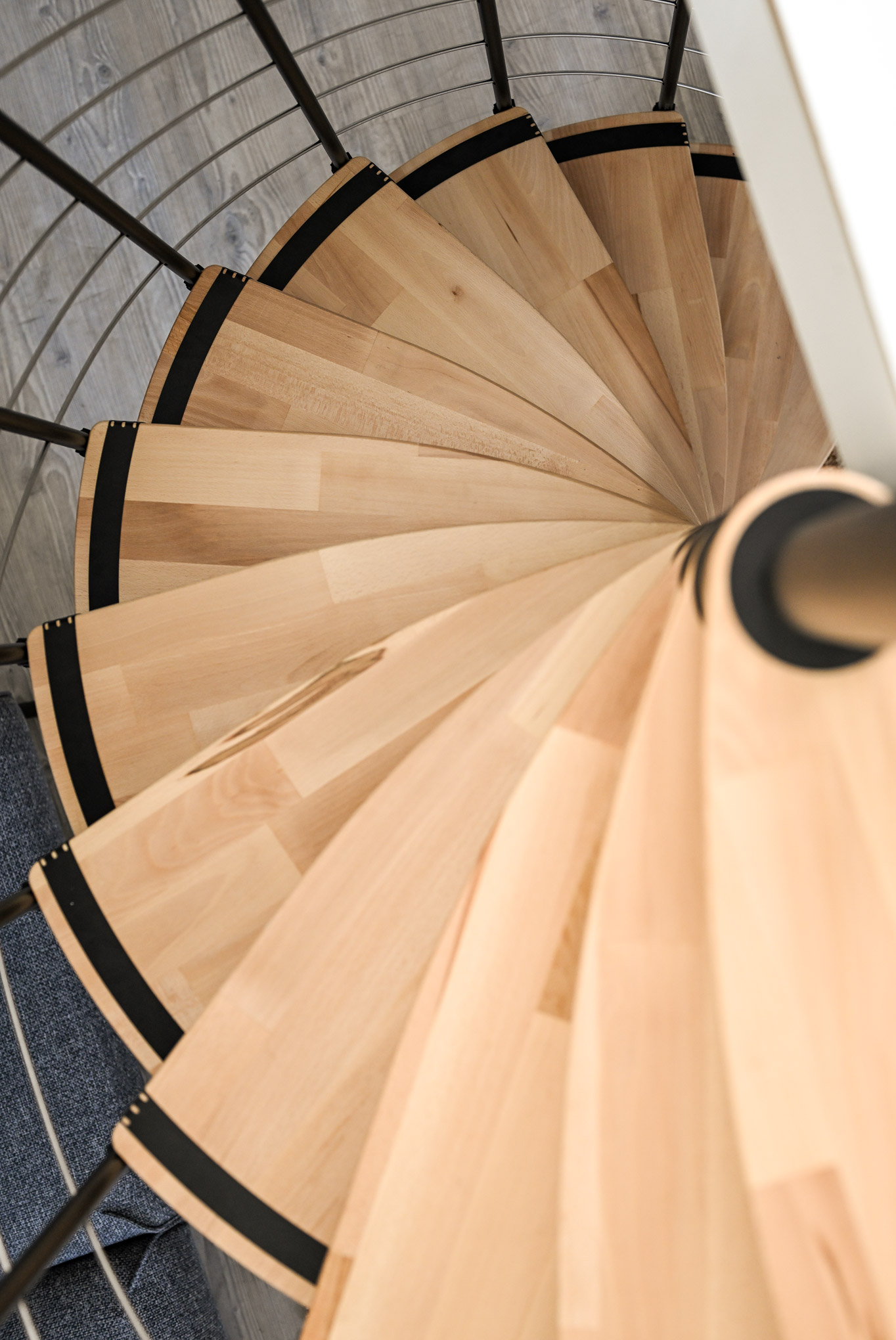

Top view of the Helios spiral staircase. The light wooden steps combined with black details create a harmonious, modern design. The round shape highlights the space-saving construction of the staircase.

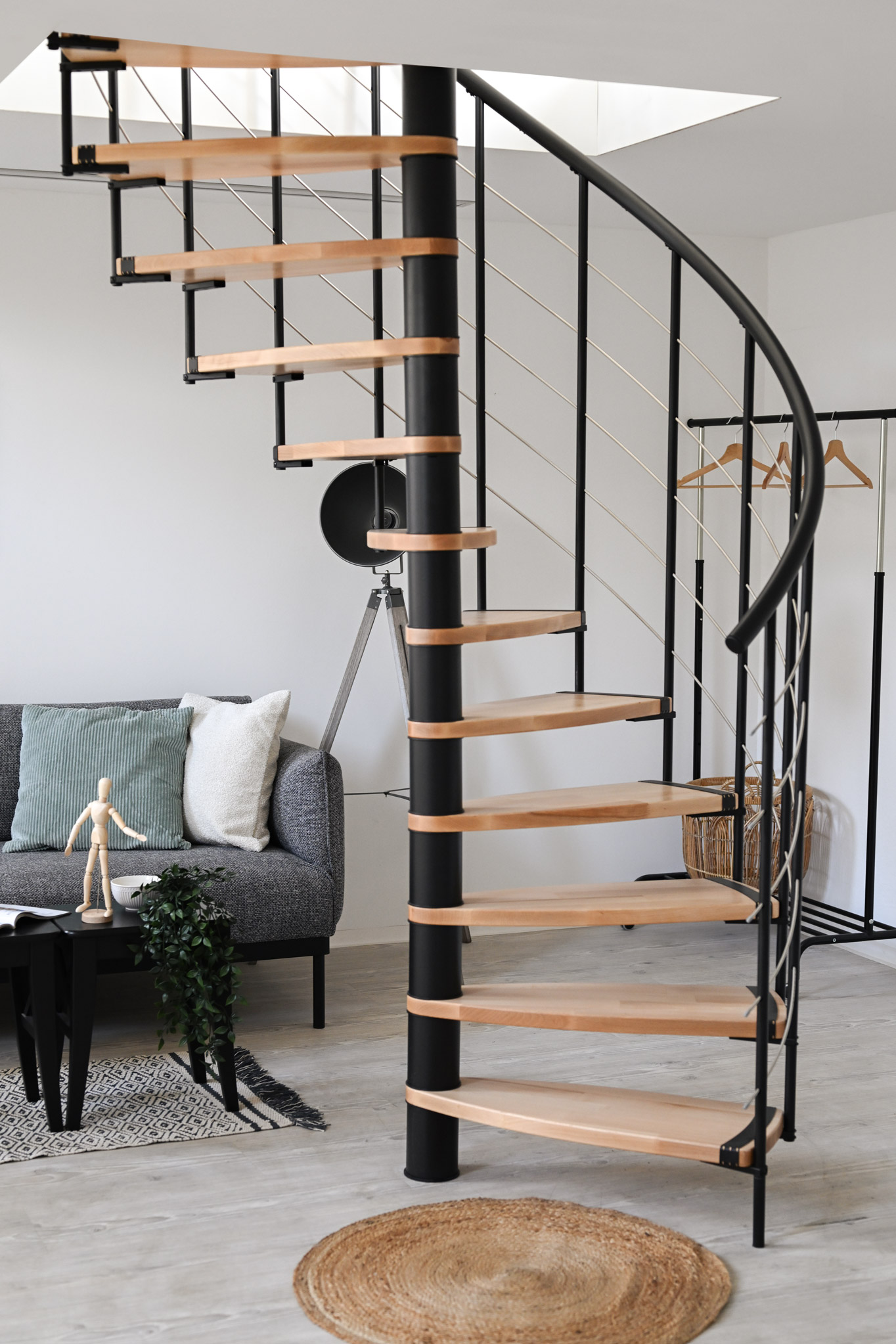

Modern spiral staircase Helios with a stylish combination of light-coloured wood and black metal - space-saving, elegant and ideal for contemporary living.

Helios

  • Flexibly shortenable steps made of solid beech wood
  • Powder-coated metal strips hold cut steps together and conceal cut edges
  • Suitable for ceiling openings with a length of 101-155 cm and a width of 57-84 cm
  • Metal parts powder-coated in black, grey or white
  • Bottom rails made of stainless steel, handrail made of high-quality PVC
  • Maximum storey height: 3055 mm

The validation text should appear here.The stairs are suitable for this room height.
Export as PDF
Add to wishlist

1.650,00 € incl. tax excl. shipping costs*

SKU: N/A Categories: , Tags: ,

Description

Do you have limited space to get to the next floor and the standard dimensions of many staircases simply don’t fit? That’s no longer a problem! With the spiral staircase Helios, you can cut the steps to the desired length yourself. Powder-coated metal strips are used to fasten the split steps together and skilfully conceal the cut.

Flexible design.

The spiral staircase Helios is suitable for ceiling openings of 101-155 x 57-84 cm thanks to the option of cutting the steps to size. It can therefore also be installed in very small hatches. The steps are made of lacquered beech wood. The metal parts and the handrail made of high-quality PVC are available in black, grey and white. The horizontal struts of the railing are made of stainless steel.

Sustainable use.

Although the spiral staircase Helios requires little space, it is extremely comfortable to walk on. The steps provide sufficient tread surface and allow you to walk up and down safely. The sturdy banister additionally secures the staircase to the outside.

Technical data

Basic data
Steps Beech lacquered
Spindle tubes Steel powder-coated in grey, black or white
Railing rods Steel powder-coated in grey, black or white
Horizontal chords Stainless steel
Handrail PVC grey, black or white
Number of steps 13
Dimensions
Basic size 1010-1550 x 570-840 mm
Diameter 930-1470 mm
Max. storey height 3055 mm

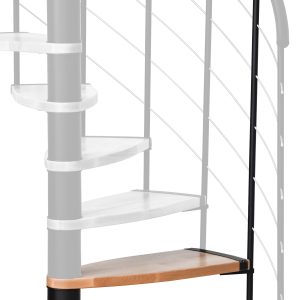

Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Rise per step 190-235 mm
Tread depth 150-230 mm
Free passage width 410-680 mm
Tread thickness 35 mm
Rotation per step 20°
Spindle diameter 108 mm
Railing height 1000 mm
Railing rod diameter 22 mm
Handrail diameter 40 mm
Width of the metal strip on the steps 40 mm
