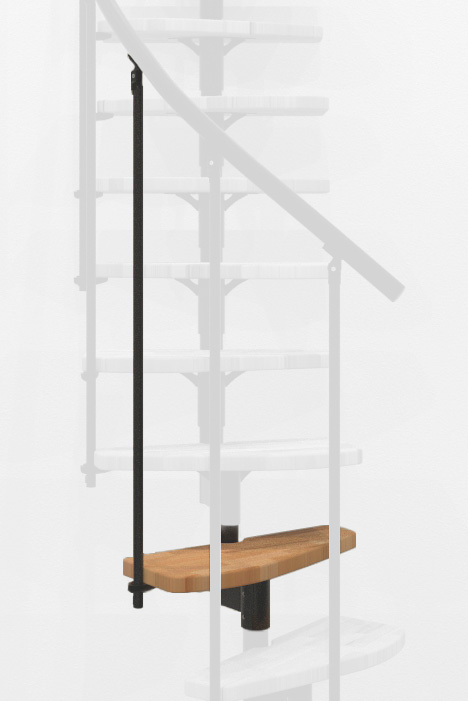

Height extension for the Monte Carlo staircase with beech steps and black metal. Shown is a detail of the additional step, the railing bars, and the handrail.
Height extension for the Monte Carlo staircase with beech steps and black metal. Shown is a detail of the additional step, the railing bars, and the handrail.

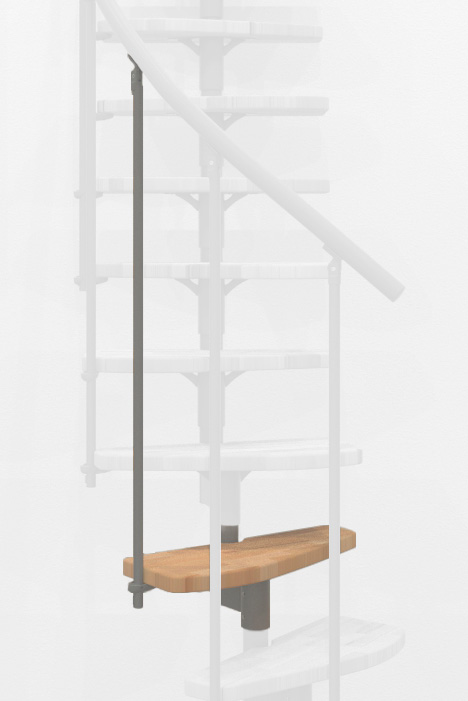

Height extension for the Monte Carlo staircase with beech steps and grey metal. Shown is a detail of the additional step, the railing bars, and the handrail.

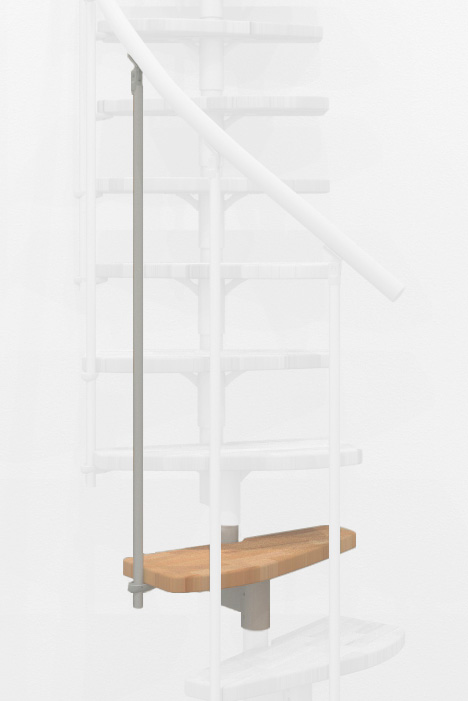

Height extension for the Monte Carlo staircase with beech steps and white metal. Shown is a detail of the additional step, the railing bars, and the handrail.

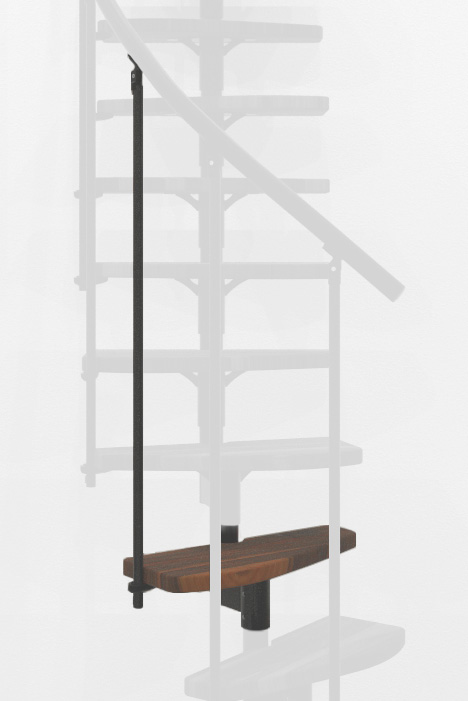

Height extension for the Monte Carlo staircase with walnut steps and black metal. Shown is a detail of the additional step, the railing bars, and the handrail.

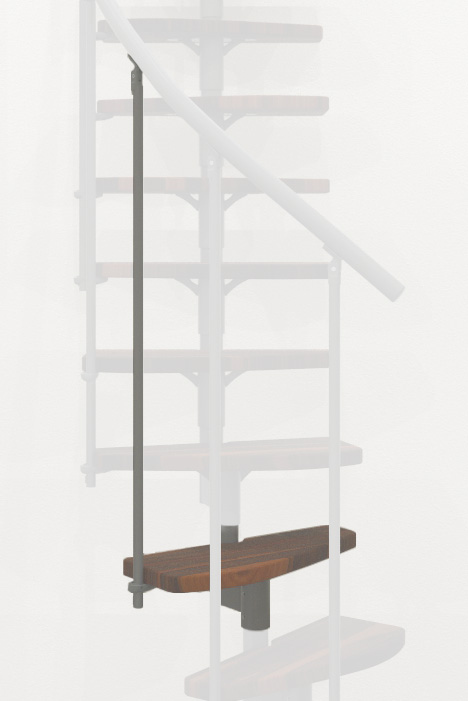

Height extension for the Monte Carlo staircase with walnut steps and grey metal. Shown is a detail of the additional step, the railing bars, and the handrail.

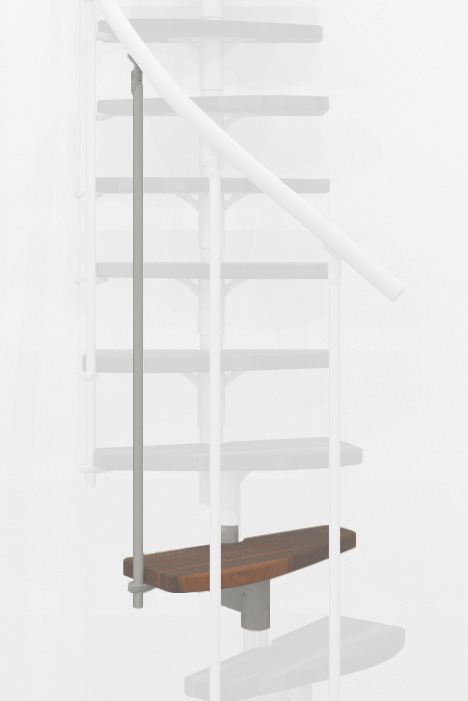

Height extension for the Monte Carlo staircase with walnut steps and white metal. Shown is a detail of the additional step, the railing bars, and the handrail.

Height extension for Monte Carlo

  • Additional step for space-saving staircase Monte Carlo
  • Extension of Monte Carlo by 172-226 mm
  • Maximum attainable storey height with one height extension: 3164 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.
Export as PDF
Add to wishlist

126,00 € incl. tax excl. shipping costs*

SKU: N/A Category: Tags: ,

Description

The height extension for the space-saving staircase Monte Carlo consists of an additional step, a baluster and the appropriate installation material. The step is available in a walnut or beech finish to match the staircase and the metal parts are powder-coated in black, grey or white. When purchasing, please ensure that the height extension has the same configuration as your staircase.

The additional step enables the staircase to be extended by 172-233 mm, allowing a maximum storey height of up to 3262 mm to be achieved.

Please install a maximum of one height extension with these staircases! If two or more additional steps are installed, stability is no longer guaranteed.

Technical data

Basic data
Steps Beech lacquered or beech stained to walnut
Metal parts Steel powder-coated in grey, black or white
Handrail PVC grey, black or white
Number of steps 12
Dimensions
Basic size 1425 x 635 mm
Max. storey height 2938 mm
Max. storey height with one height extension 3164 mm
Tread depth 210 mm
Rise per step 172-226 mm
Free passage width 600 mm
Tread thickness 35 mm
Railing height 900 mm
Railing rod diameter 22 mm
Handrail diameter 40 mm

Downloads

Assembly instructions

Assembly instructions height extension

Technical datasheet
